รายละเอียดสินค้า:
การชำระเงิน:
|
| ผลิตภัณฑ์: | มอเตอร์ไฮดรอลิก | หมายเลขรุ่น: | BMSY-475-E6-G6-S5 |
|---|---|---|---|
| การกำจัด: | 475 ซีซี | หน้าแปลน: | 6 สายฟ้า |
| เพลา: | 31.75 มม | ผู้ผลิต: | ฮั่นจิ่ว |
| เน้น: | Low Speed High Torque Hydraulic Motor 475cc,Orbital Hydraulic Motor six bolt flange,Hydraulic Motor 31.75mm shaft |
||

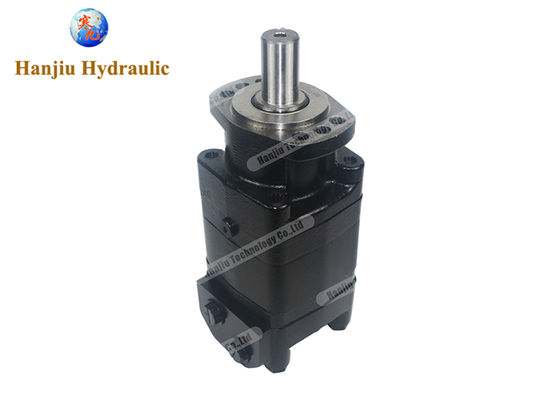

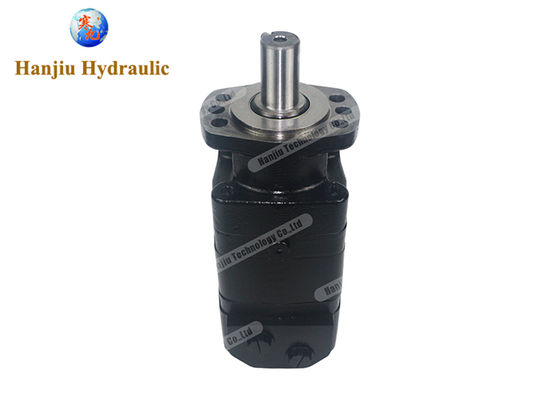

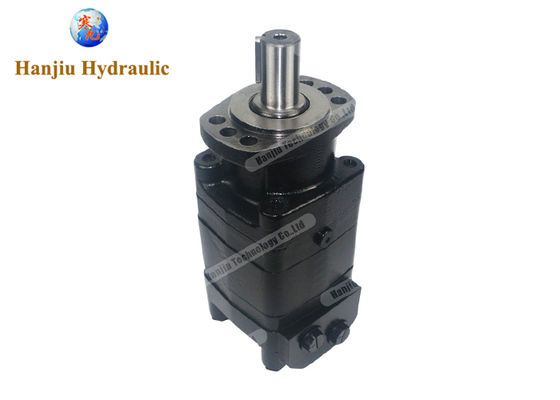

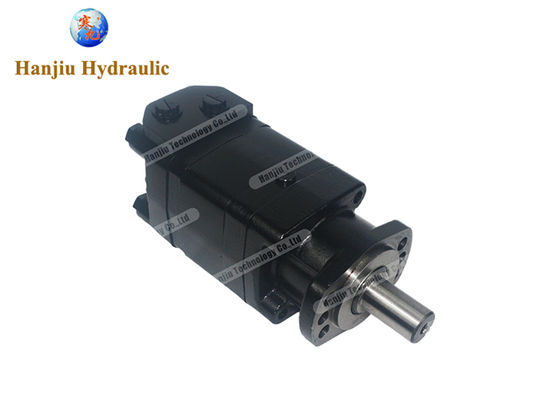

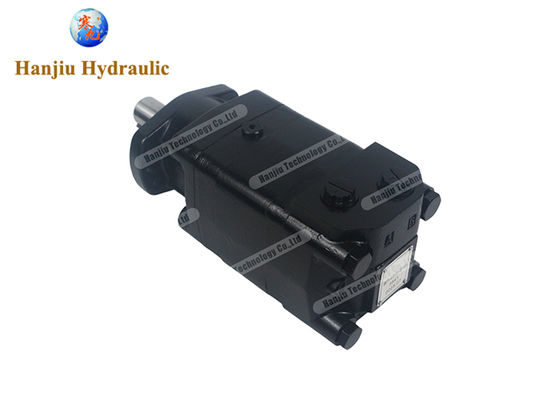

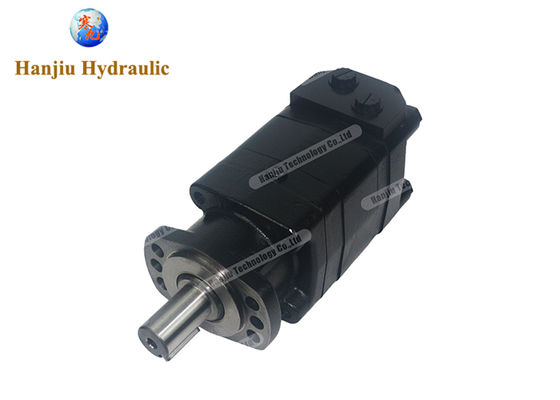

Hydraulic motor BMS series with 180° Apart ports Equivalent to OMS MS
Quick review:
| Model No. | BMSY-475-E6-G6-S5 |
| Geometric displacement | 475 cm³ |
| Max. speed continuous. | 748 rpm |
| Max. speed intermittent. | 900 rpm |
| Max. torque continuous. | 290 Nm |
| Max. torque intermittent | 390 Nm |
| Max. pressure continuous | 210 bar |
| Max. pressure intermittent. | 250 bar |
| Max. pressure peak | 270 bar |
BMS series with more mounting and shaft apply to Swing Motor, Brush Cutters & Mowers, Harvesting Equipment, Directional Boring any place pressure relief protection is optimal for system or motor performance and life, Turf equipment and more.
Specification:
| Main Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* Continuous pressure :Max. value of operating motor continuously. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
More BMS series hydraulic motors available from us:
More hydraulic motors available:
About Hanjiu:
Hanjiu technology is the biggest hydraulic motors, orbit motors, low speed high torque motors, torquemotors manufacturer in China, we have the most completely range of them, matching Danfoss/ M+S/ Charlynn/ White/ Parker... with fast leading time, excellent price and best service. Our aim is to make your hydraulic system is easy and affordable!
