รายละเอียดสินค้า:
การชำระเงิน:
|
| ผลิตภัณฑ์: | มอเตอร์ไฮดรอลิกแรงบิดสูงความเร็วต่ำ | รุ่นหมายเลข: | BMER-3-475 |
|---|---|---|---|
| ขนาด: | 475ml/r | หน้าแปลน: | Magneto Mount 4 หลุมหน้าแปลน |
| เพลา: | เพลาคีย์ 25.4 มม. | การหมุน: | CCW |
| ท่าเรือ: | 7/8-14UNF | วัสดุ: | เหล็กหล่อ |
| เน้น: | low speed high torque hydraulic motor 475ml/r,cast iron hydraulic motor with warranty,475ml/r hydraulic motor for heavy duty |
||

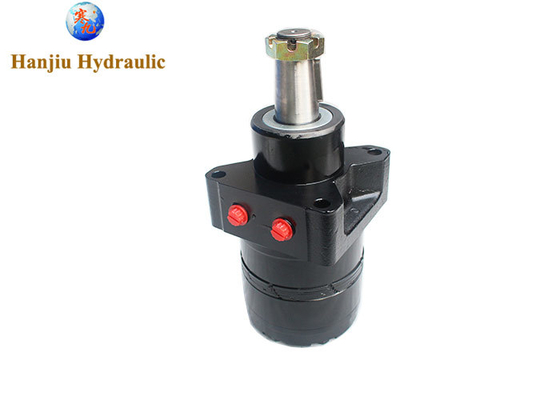

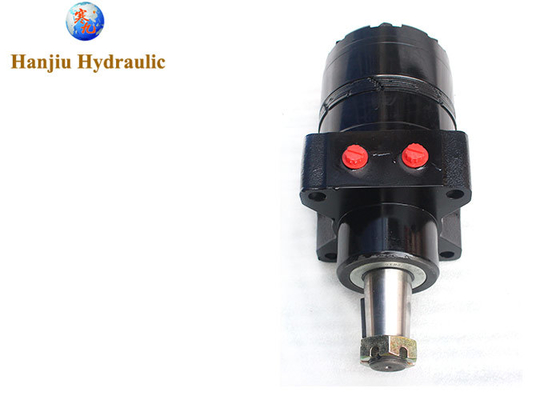

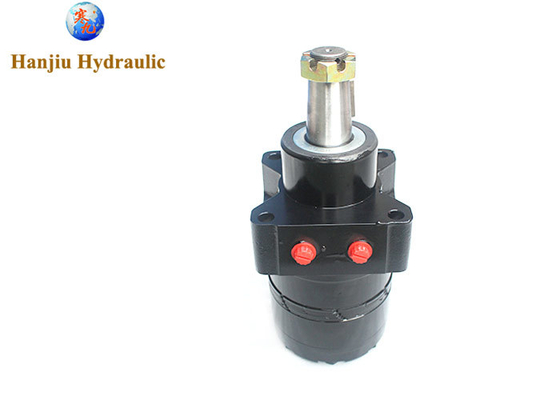

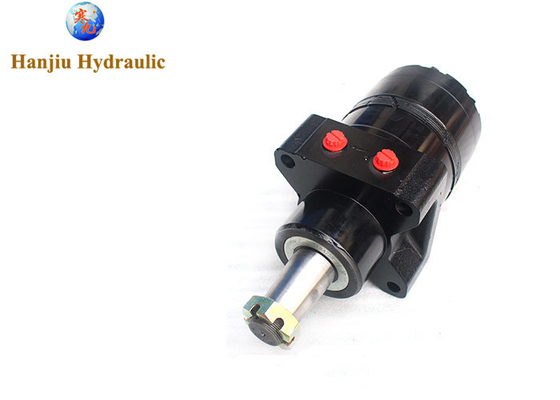

Low Speed High Torque Hydraulic Motor designed for manlifts and aerial work platforms, model BMER-3-475-WS1-T31 with 475ml/r displacement.
| Product | Low Speed High Torque Hydraulic Motor |
| Model No. | BMER-3-475-WS1-T31 |
| Size | 475ml/r |
| Flange | Wheel flange |
| Shaft | Cone-Shaft Ø38.1, Parallel key |
| Rotation | CCW |
| Port | 7/8-14UNF |
| Material | Cast iron |
| Model No. | BMER-3-475-WS1-T31 |
| Displacement | 475 ml/r |
| Flange | Magneto mount 6-hole |
| Pilot | 82.55*2.8 |
| Ports | 7/8-14UNF |
| Output Shaft | Tapered shaft |
| Rotation | Right |
| Paint | Black |
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 |
| Max. speed (rpm) cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| Max. speed (rpm) int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 |
| Max. torque (N•m) cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| Max. torque (N•m) int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 |
| Max. torque (N•m) peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 |
| Max. output (kW) cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| Max. output (kW) int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 |
| Max. pressure drop (MPa) cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| Max. pressure drop (MPa) int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 |
| Max. pressure drop (MPa) peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 |
| Max. flow (L/min) cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| Max. flow (L/min) int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
