รายละเอียดสินค้า:
การชำระเงิน:
|
| ผลิตภัณฑ์: | มอเตอร์ไฮดรอลิกของเกอโรเลอร์ | รุ่นหมายเลข: | บีเอ็มวี มอเตอร์ |
|---|---|---|---|
| การกำจัด: | 400 ซีซี | ยี่ห้อ: | ฮั่นจิ่ว |
| วัสดุ: | เหล็กหล่อ | การรับประกัน: | 1 ปี |
| เน้น: | hydraulic motor cone shaft 60mm,orbit hydraulic motor BMV series,hydraulic motor SMV OMV 315 |
||

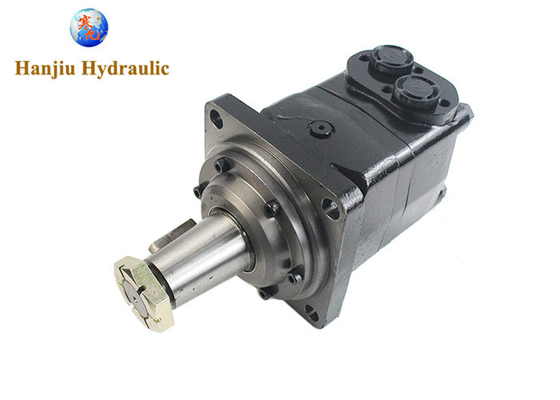

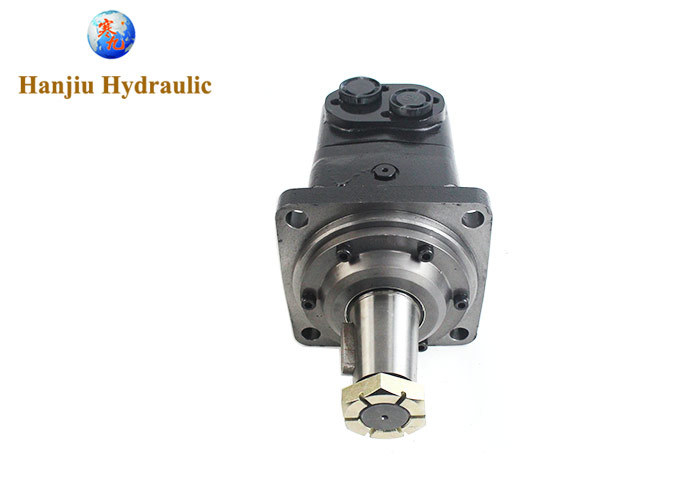

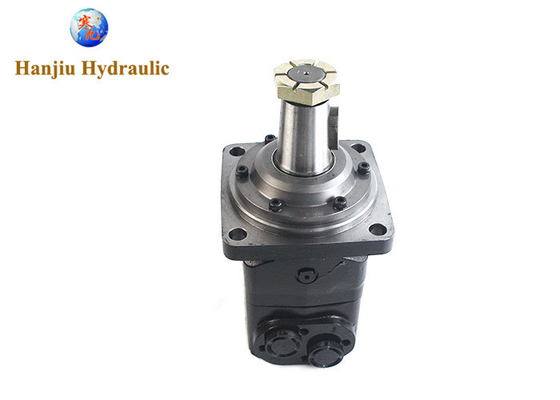

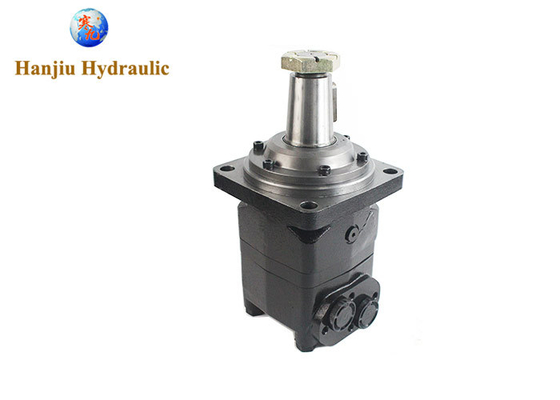

HYDRAULIC MOTOR BMV SMV OMV 315 SHAFT : Cone-shaft ø60
This series is the BMV series hydraulic motor
Model: BMV-315-4-T-D
Displacement: 315ml/r
Flange: 4-Ø18 Square-flange Ø160, pilot Ø160X11
Shaft: Cone shaft Ø60, parallel key 16×10×32
Rotation :Standard
Main Specifications:
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
| Weight (kg) | 31.8 | 32.6 | 33.5 | 34.9 | 36.5 | 38.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Matching below types
| 151B3100 | 151B3101 | 151B3102 | 151B3103 | 151B3104 |
| 151B2150 | 151B2151 | 151B2152 | 151B2153 | 151B2154 |
| 151B3105 | 151B3106 | 151B3107 | 151B3108 | 151B3109 |
| 151B2155 | 151B2156 | 151B2157 | 151B2158 | 151B2159 |
| 151B3110 | 151B3111 | 151B3112 | 151B3113 | 151B3114 |
| 151B2160 | 151B2161 | 151B2162 | 151B2163 | 151B2164 |
| 151B2183 | 151B2184 | 151B2185 | 151B2186 | 151B2187 |
| 151B2188 | 151B2189 | 151B2190 | 151B2191 | 151B2192 |
| 151B3115 | 151B3116 | 151B3117 | 151B3118 | 151B3119 |
| 151B3120 | 151B3121 | 151B3122 | 151B3123 | 151B3124 |
| 151B2170 | 151B2171 | 151B2172 | 151B2173 | 151B2174 |
Application:
Key Applications
Construction Equipment
Excavators Driving tracks
swing mechanisms, and attachments.
Cranes Rotating and lifting operations.
Drilling rigs Powering drilling mechanisms and auxiliary functions.
Harvesters
conveyors.
Mixers Driving mixing blades
Winches
